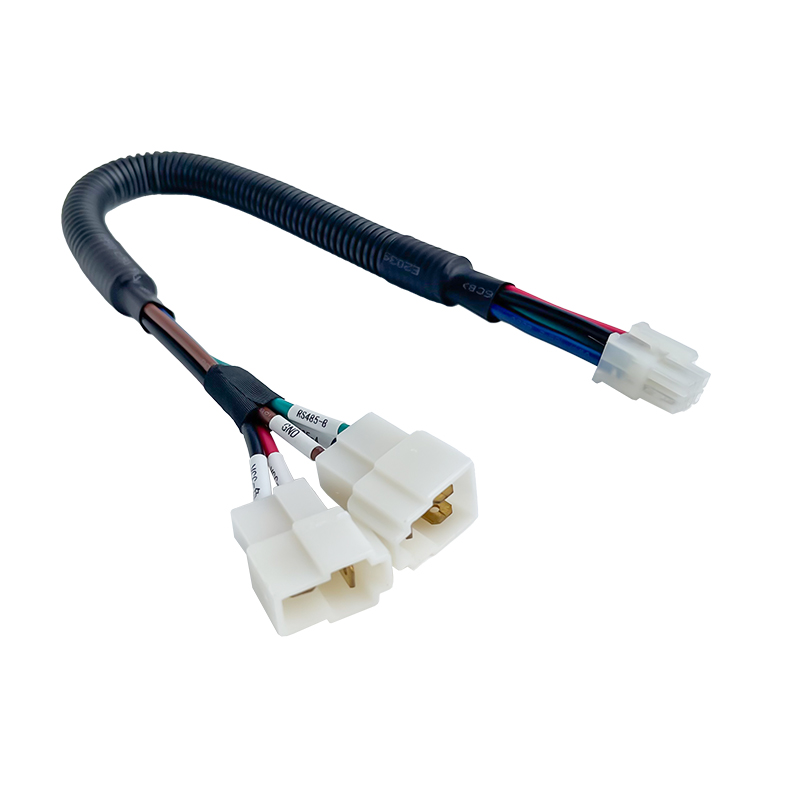

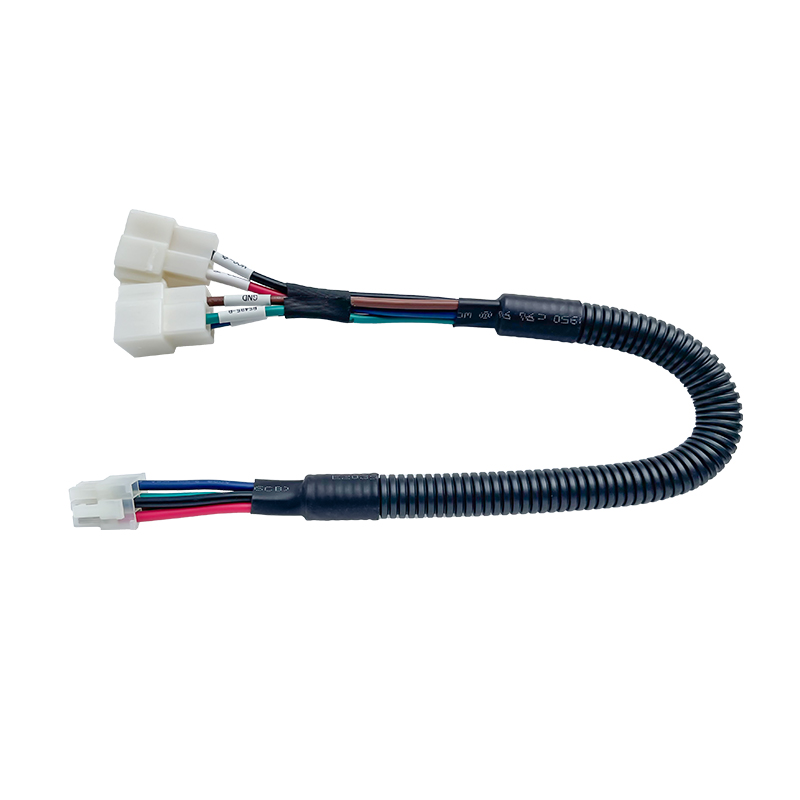

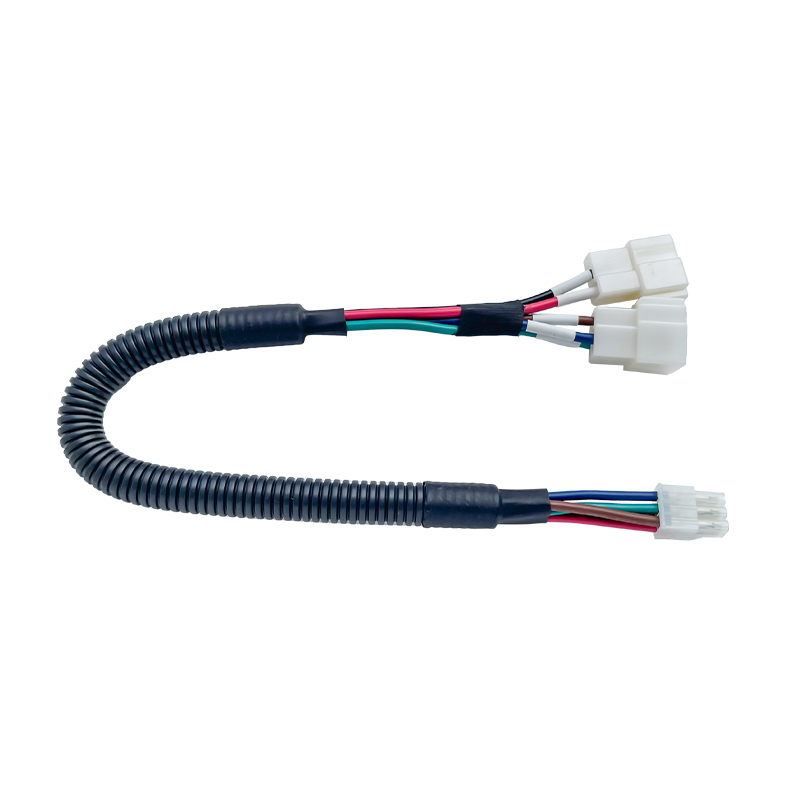

This custom automotive wiring harness is built with premium UL1015 16AWG red, black, blue, green, and brown wires at a standard length of 360mm. It features a 5557-2×3P connector on one end and THB 7031-6.3-11A dual terminals on the other, enhanced with durable corrugated tubing for protection and flexibility. Designed for two-wheeled vehicles and electric scooters, this harness ensures stable power delivery for control systems and power boards.
Art.-Nr :
UL1015Zahlung :
Advance PaymentProduktherkunft :
ChinaFarbe :
blackHafen :
According To Customers WishesVorlaufzeit :
15-20 daysPreis :
FOB PriceCustom UL1015 Power Board Power Wiring Harness for Automotive
The UL1015 16AWG automotive wiring harness is engineered for reliable electrical performance in two-wheeled vehicles, electric motorcycles, and compact EV control modules. The corrugated tubing provides abrasion resistance, mechanical protection, and clean routing for installation. With customizable wire lengths, connector types, and configurations, this harness supports a wide variety of OEM and aftermarket applications.
Specifications
| Parameter Category | Specification Item | Details |
| General Specifications | Product Name | Custom UL1015 Power Board Power Wiring Harness for Automotive |
| Model Number | UL1015 16AWG (Customized) | |
| Primary Applications | Two-wheeled vehicles, Electric vehicles, Power board power supply | |
| Input Specifications | Connector Type | 5557-2×3P Male Shell (one end) |
| Wire Type | UL1015 16AWG Red / Black / Blue / Green / Brown | |
| Length | 360mm (Customizable) | |
| Output Specifications | Terminal Type | THB 7031-6.3-11A × 2PCS |
| Cable Specifications | Protection | Corrugated Tube |
| Custom Options | Length / Connector Type / Tube Type |
Key Features:
Applications:
Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.
After-sale Service:
Packing & Delivery:
 |
 |
FAQ:
1. Does it support the customization of wiring harness?
Yes, customized color and length options are available upon request to meet the needs of different applications.
2. Does it comply with relevant safety and certification standards?
Yes, our wiring harnesses comply with industry standards, such as UL, CE, etc., and have passed strict safety certification.
3. How can I get more information on the technical details and customization options for these harnesses?
You can contact our sales team for more detailed information on technical details, customization options and quotations.
