The New Energy AC Power Wire Harness Cable is designed for efficient and safe power transmission in EV charging stations, control power supplies, and home energy storage systems. Using high-quality UL10269 16AWG wires with vibrant color coding (red, blue, yellow, and green), it ensures clear wiring identification and reliable performance under demanding electrical conditions.
This AC power harness is engineered for high current capacity, temperature resistance, and stable conductivity, providing dependable power delivery in new energy and renewable energy systems.
Art.-Nr :
UL10269Zahlung :
Advance PaymentProduktherkunft :
ChinaFarbe :
blackHafen :
According To Customers WishesVorlaufzeit :
15-20 daysPreis :
FOB PriceNew Energy AC Power Wire Harness Cable for UL10269 16AWG Conductors

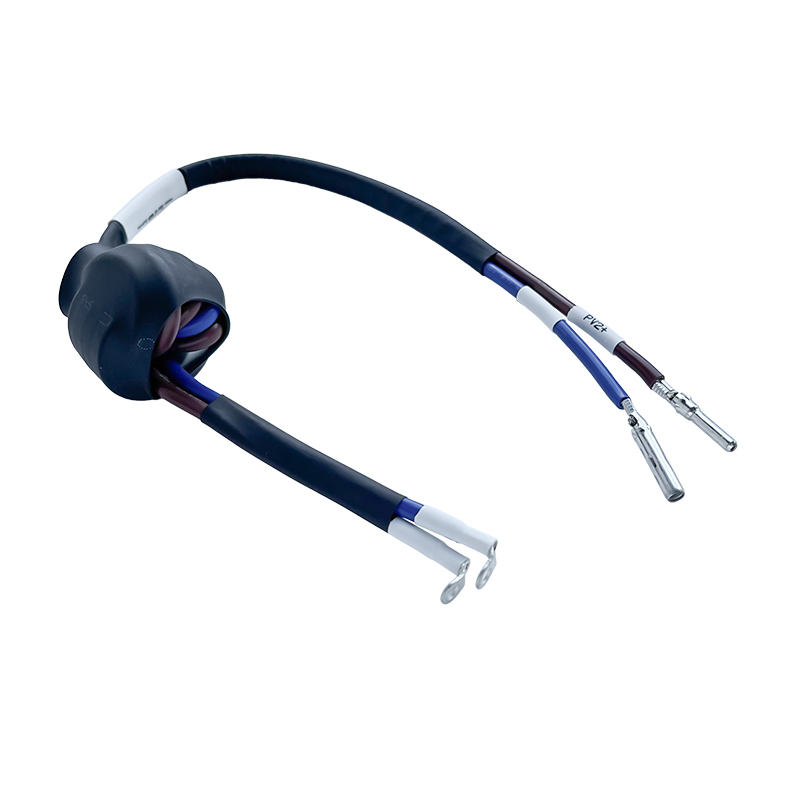

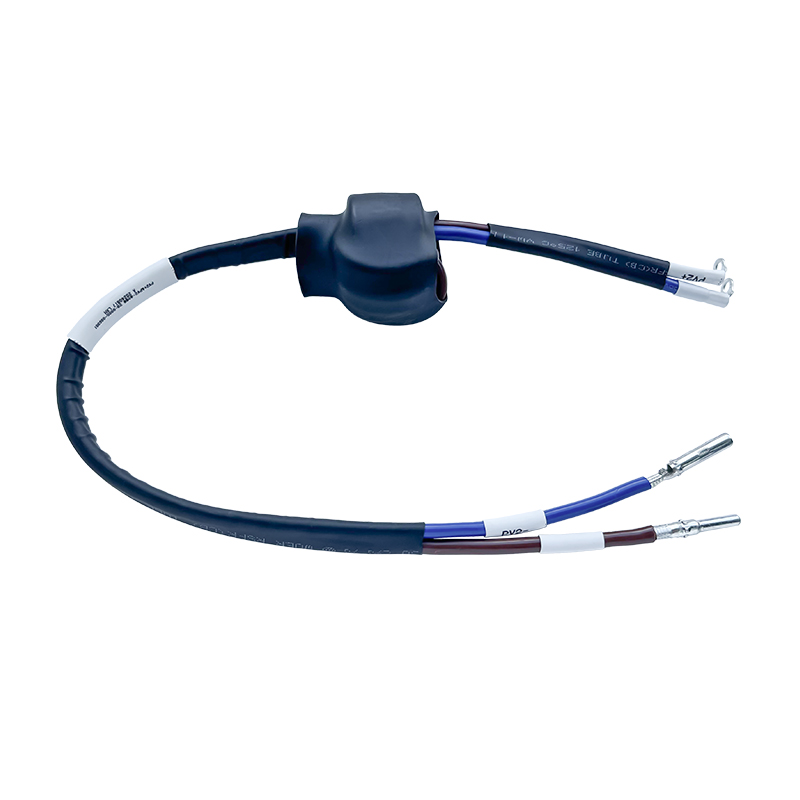

This AC Power Wire Harness Cable features UL10269 16AWG conductors in red, blue, yellow, and green with a standard length of 380 mm. One end is fitted with an RNBS2-4-90D ring terminal, while the opposite end connects to PV male and female terminals.
Each wire is precisely crimped and insulated to guarantee strong mechanical connections and electrical safety. The harness supports customized lengths and terminal configurations, making it adaptable to various installation environments such as EV charging piles, solar storage systems, and power control cabinets.
Built to UL standards, this wiring solution provides excellent heat resistance, insulation stability, and mechanical durability, ensuring long-term reliability in AC power transmission applications.
Specifications
| Parameter Category | Specification Item | Details |
| General Specifications | Product Name | New Energy Wiring Harness / Collection Harness |
| Model Number | Model Number | 3239#22 Black Wire (Customizable) |
| Primary Applications | Charging pile, Control power supply, Home energy storage | |
| Input Specifications | Length | 380 mm (Customizable) |
| Output Specifications | Terminal Type | SMR-02V |
| Connector (End A) | RNBS2-4-90D Ring Terminal | |
| Connector (End B) | PV Male & Female Terminals | |
| Wrapping Material | High-Temperature PVC | 300V |
| Cable Specifications | Rated Voltage | 600V AC |
| Rated Temperature | 105 °C | |
| Customization | Customization | Wire length, connector type, color coding |
Key Features:
Applications:
Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.
After-sale Service:
Packing & Delivery:
 |
 |
FAQ:
1. Does it support the customization of wiring harness?
Yes, customized color and length options are available upon request to meet the needs of different applications.
2. Does it comply with relevant safety and certification standards?
Yes, our wiring harnesses comply with industry standards, such as UL, CE, etc., and have passed strict safety certification.
3. How can I get more information on the technical details and customization options for these harnesses?
You can contact our sales team for more detailed information on technical details, customization options and quotations.
