Custom 6-in-1 Test & Debug Cable Assembly Factory

Custom 6-in-1 Test & Debug Cable Assembly Factory

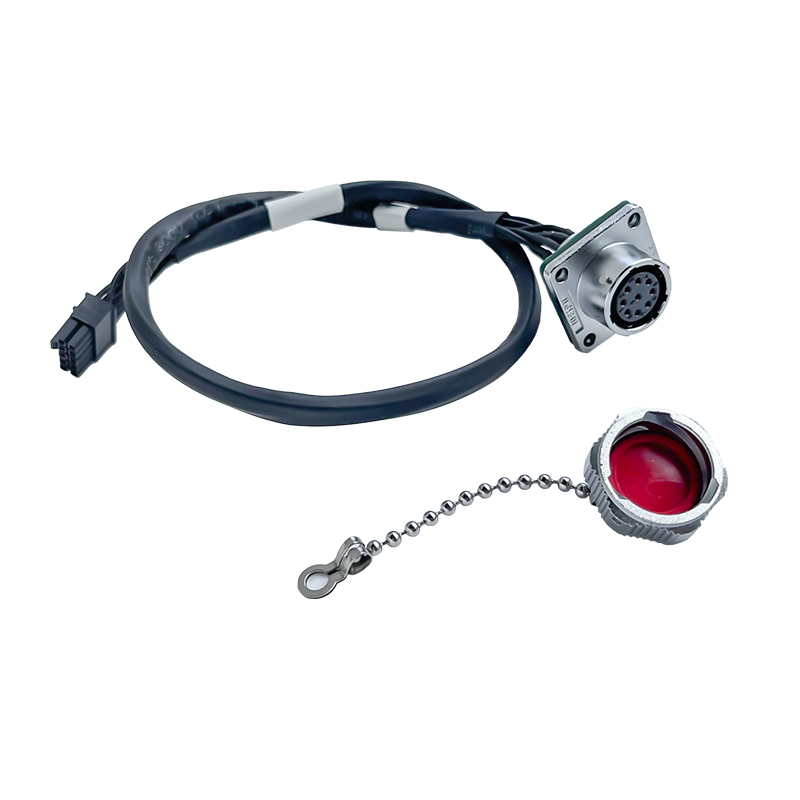

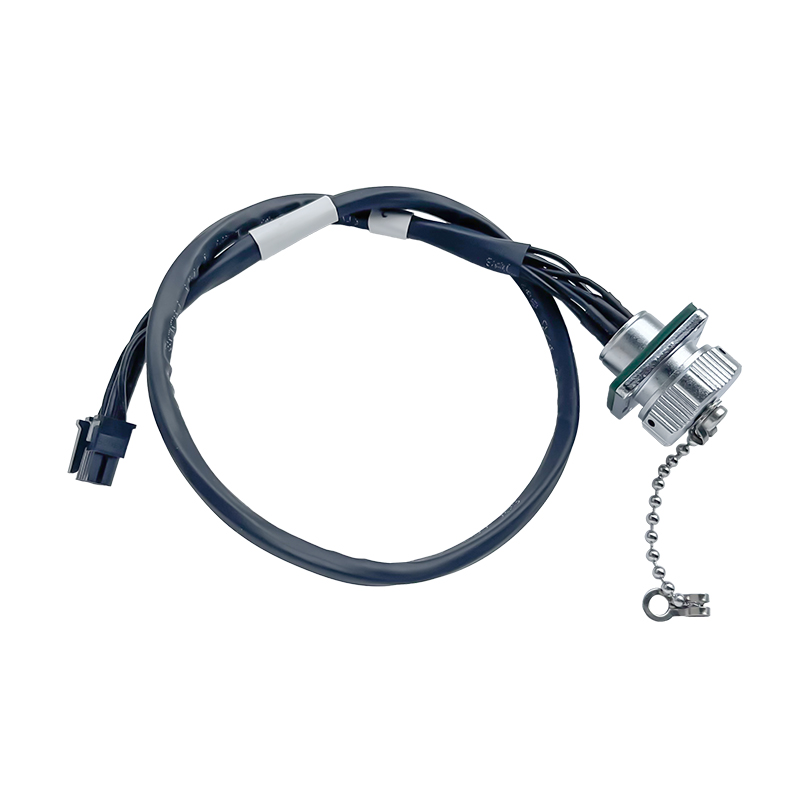

This 6-in-1 debugging harness is engineered for precision diagnostics in new energy systems, bridging rugged Weipu aviation connectors with reliable Molex interfaces. Constructed with UL3266 26AWG wire and fully reinforced with heat-shrink tubing, it delivers durable, low-noise performance for critical testing and maintenance operations.


Specifications

Key Features:

• Precision Conductivity & Low Loss:The core utilizes high-purity tinned copper conductors (UL3266). This precision manufacturing process achieves minimal DC resistance, ensuring that weak diagnostic signals are transmitted without loss or distortion, which is critical for accurate troubleshooting.
• Stable Current Performance:Despite its compact 26AWG profile, the scientific wire selection and thermal design ensure controlled temperature rise. The wire maintains peak performance even during continuous diagnostic sessions, preventing data drift caused by heat.

• Ruggedized Interface:

• Field Side: Equipped with the Weipu WY16K9Z Aviation Connector, providing a secure, vibration-resistant, and weather-proof connection suitable for industrial environments.

• Device Side: Terminated with the industry-standard Molex 43025-1000 (Micro-Fit 3.0) connector for high-density, reliable electronic interfacing.

• Enhanced Durability: The wire body is sheathed in heat-shrink tubing, offering superior protection against abrasion, moisture, and mechanical stress compared to standard loose wires.

Applications:

• Field Diagnostics: Connecting portable diagnostic tools to EV battery packs or inverters.
• Production Line Testing:End-of-line (EOL) testing for Battery Management Systems (BMS).
• ECU Programming:Flashing or debugging firmware on electronic control units.
• Prototype Development: Reliable signal bridging during R&D phases for new energy controllers.

Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.

After-sale Service:

• Technical support online service provided.
• OEM available.
• Our product with test report and certification
• Our product with 3 year warranty.

Packing & Delivery:

FAQ:

1. Does it support the customization of wiring harness?

 Yes, customized color and length options are available upon request to meet the needs of different applications.

 2. Does it comply with relevant safety and certification standards?

 Yes, our wiring harnesses comply with industry standards, such as UL, CE, etc., and have passed strict safety certification.

3. How can I get more information on the technical details and customization options for these harnesses?

You can contact our sales team for more detailed information on technical details, customization options and quotations.
